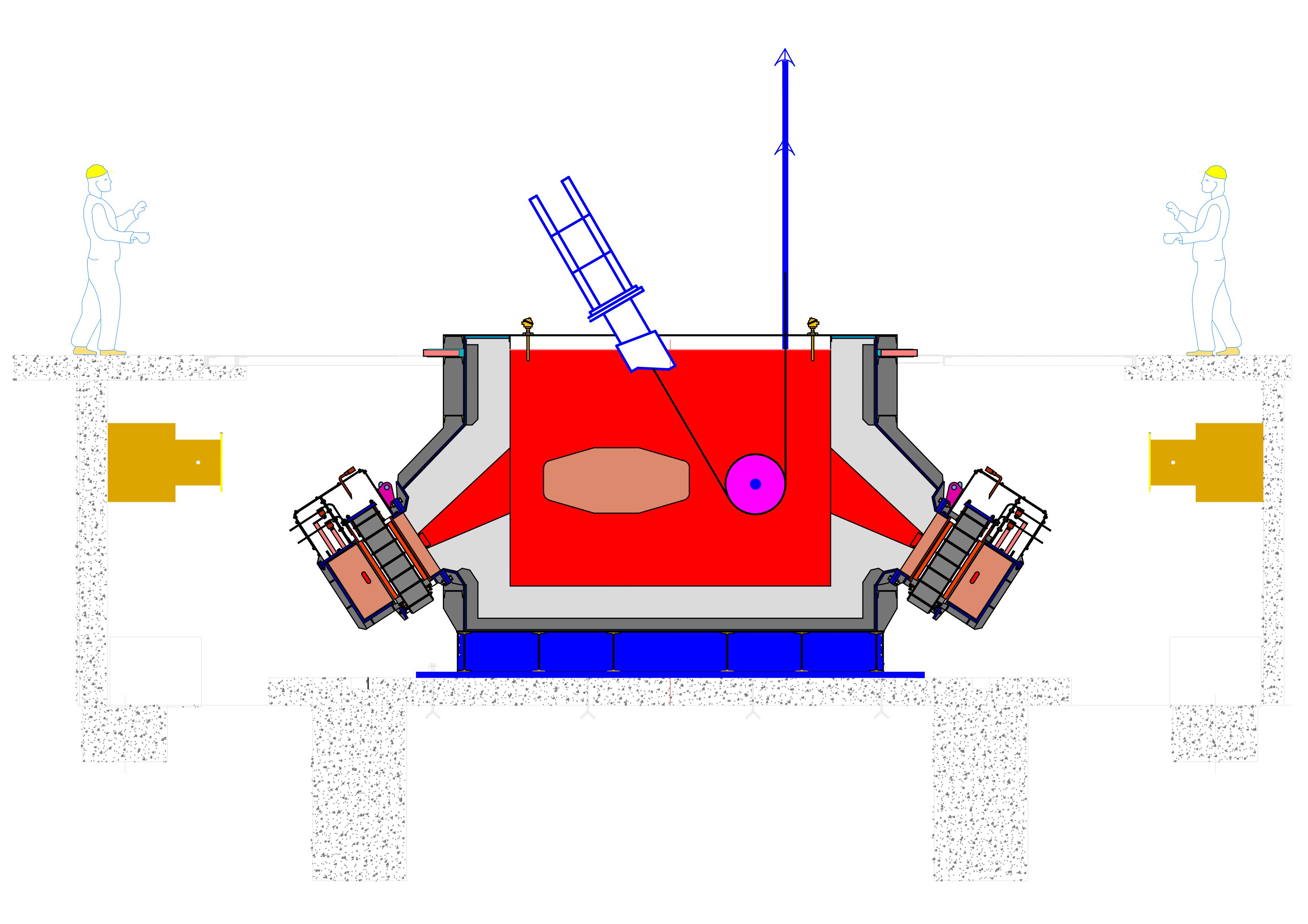

Coating Pot
· Ceramic Lined Zinc Pot along with Channel Inductors for coating and melting of Zinc on the industrial strip.
· Pot can be equipped with a single inductor up to 650 Kw or multiple inductors for a total power of 4000 kW.
· An advanced microprocessor-based control to ensure operation at unity power factor.
· Automatic operation with temperature control maintains bath at desirable coating temperature within close tolerance.
· Each inductor with its own dedicated separate power supply.
· Forced air-cooled W type inductor withSS/ Copper earth shield up to 500 kW..
· Water-cooled inductor for up to 700 KW rating.
· Advanced High flow configuration of metal loop ensures less clogging on metal loop and offers better heat transfer as well as eliminates hot spot.
Range : 25 tonnes to 150 tonnes with multiple air cooled
Inductors : 250 kW to 725 kW.
